| Dimensions (thickness, height, length) | 8*66/6*50 cm |
|---|---|
| Weight per square meter (3 blocks) | 72-78kg |
| Acoustic resistance | 36db |
| Impact resistance | 102kg/cm2 |
| Compressive resistance | 262kg/cm2 |
| Bending resistance | 87kg/cm2 |
| Heat transfer resistance (per centimeter of thickness) | 0.027kcal/hr |
| Heat transfer coefficient (with relative humidity of 4.5%) | 0.35kcal/hr |
Gypsum Blocks
Gypsum block is a prefabricated factory product that is made of gypsum and fibers and is used in construction and building renovation. This construction product has various uses, features, disadvantages and advantages that we will examine further.
Characteristics of prefabricated gypsum blocks
Wall block or gypsum block can be easily installed due to its tongue and groove, and after its seams and grooves are filled and smoothed by gypsum block adhesive, it does not need to be plastered again and can be painted directly on it or cover the surface with wall paper. This product is designed for the quick implementation of internal walls and partitions in spaces with different uses, including commercial and residential.
The acoustic resistance of this product is 36 dB and the impact resistance is 102 kg/cm2. Also, the compressive resistance is 262 kg/cm2 and the bending resistance is 87 kg/cm2.
Another feature of the prefabricated gypsum block is that it is highly resistant to fire and the heat transfer resistance (per centimeter of thickness) is 0.027 kilo calories per hour.
Light gypsum block
Light gypsum block is a type of the best known gypsum block that is produced under high pressure by a press machine and fibers, and chemical additives, etc. are used to make it along with gypsum mortar.
Advantages of gypsum block
Quick and easy installation
It has a smooth surface without any height or depression
Suitable for partitioning and internal partitioning of the building
Reasonable price and reduction of the overall cost of the building
Removal of plaster and soil and whitening operations
Thermal and sound insulation
Gypsum block application
Gypsum block is mostly used for separating and partitioning inside buildings and non-load-bearing walls. These walls are used to separate the distance between two spaces in the building.
The main use of gypsum blocks is in the construction of non-load-bearing walls or independent wall covering and protection of columns, elevator wells, wells related to facilities, etc. against fire. It should be noted that gypsum blocks are used for wall blocks or prefabricated walls.
How to make gypsum blocks at Bolour Gatch Saveh factory

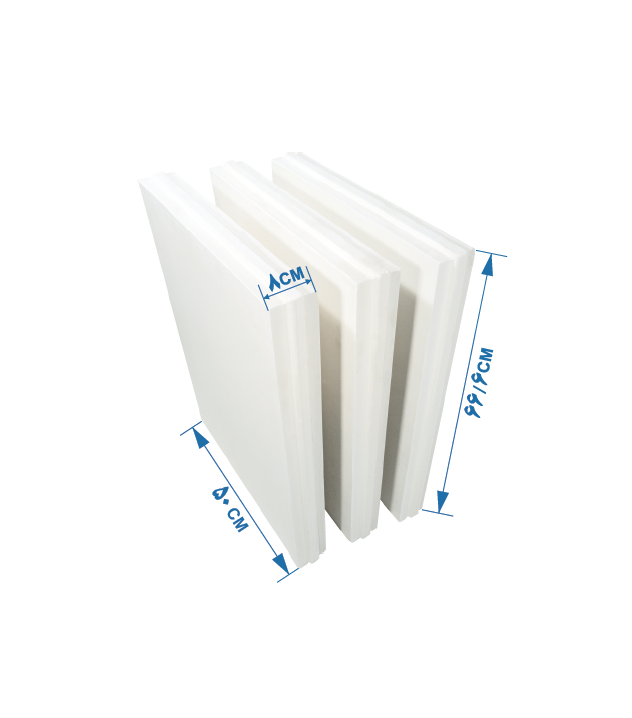

In the manufacture of gypsum block, instead of using ordinary gypsum, its finer type is used, then the prefabricated parts are molded to be taken into a special machine for the drying process. The prefabricated gypsum block is produced in the factory using fully automatic machines with high resistance and with the size of 50*6/66*8, and this has caused this wall to have various advantages and applications.
How to install a prefabricated gypsum block
To install a plaster wall, in the first step, you should measure the place of installation of the wall with an accurate meter and ruler, and then proceed to buy the gypsum block.
To start the implementation of the gypsum block, you must first cut the tongue of these blocks with a saw and then place these prefabricated blocks in the desired location using special mortars. At this stage, pour the mortar in the desired place and place the blocks on it after hardening and smoothing the surface so that it is easily connected to each other and to the ground. At the time of connecting these blocks to other gypsum blocks, note that you must first use a suitable anti-seismic tape and insulation.
After placing the blocks on top of each other, you can connect them using special equipment, which is done by hitting these blocks with plastic hammers.
Price of prefabricated gypsum block
The price of gypsum block is more economical than the wall retaining and it varies according to their size and height. Another issue that causes the difference in the price of gypsum block is the type and brand of plaster used in the production of this product.
Due to the fact that one square meter of wall can be covered for 3 blocks, in this regard, prefabricated gypsum blocks and the purchase of gypsum blocks are announced in square meters.
Sale of gypsum block on Bolour Gatch Saveh site is made with the best plaster brand and also according to standards and engineering method. Contact us for more information. This store assures customers by offering the best and highest quality of prefabricated gypsum block.
Advantages of placing an order from Bolour Gatch Saveh Company
Sale the cheap gypsum blocks compared to other competitors
Supplying the best quality gypsum block to all over Iran
Gypsum block production with the most advanced and up-to-date devices
